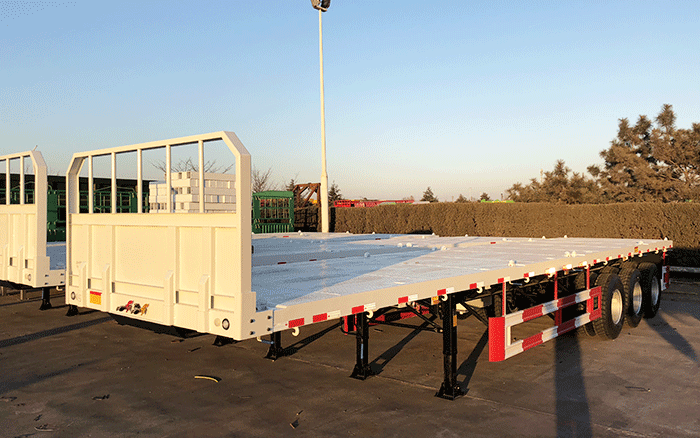

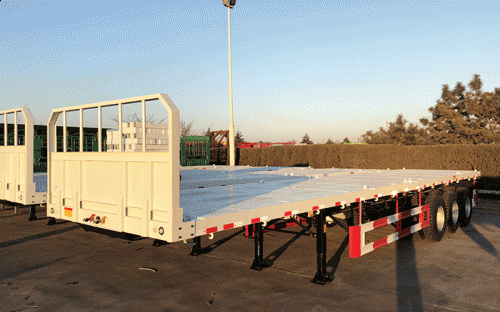

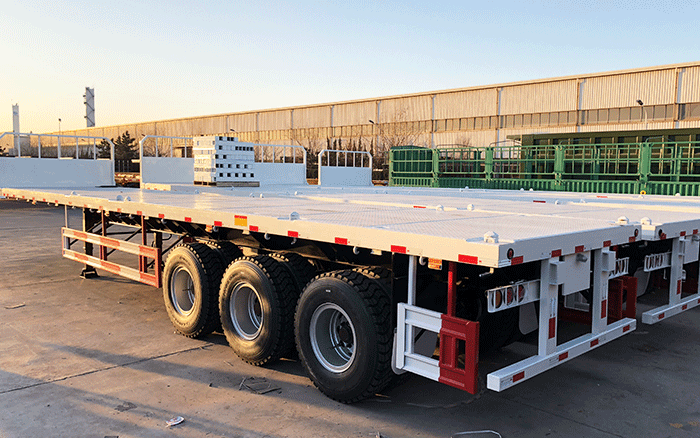

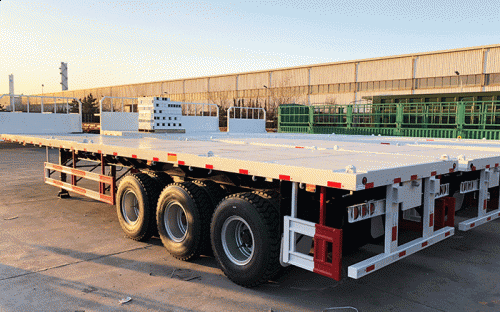

Flatbed Trailer With Front Wall
Transport items：
Containers, cement bags, stones, mechanical equipment, etc.
Other style
Ordinary,Gooseneck,superlink
Supply Ability:
200unit/Sets per Month
Containers, cement bags, stones, mechanical equipment, etc.
Other style
Ordinary,Gooseneck,superlink
Supply Ability:
200unit/Sets per Month
Description
| Assembly Name | Composition | Specifications |
| Chassis | Main beam | Q345Steel;The height of the beam is 500mm; Upper plate;14mm;Middle plate is 8mm;Down plate is 16mm. |
| Cross beam | 10# channel steel | |
| Side beam | 16# channel steel | |
| King Pin | 2”or3.5”traction pin | |
| Dimensions(L*W*H) | Can be lengthened 18m,transfer 3*20ft or1*40+2*20ft container | |
| Floor | 3mm diamond steel plate | |
| Suspension | Suspension type | Common mechanical |
| Steel Spring | 10/10/10 | |
| Running system | Axle | Axle number is 3,Axle brand is Fuwa |
| Wheel Rim | 9.0-22.5steel wheel rim | |
| Tire | Spe:12R22.5volume 11.00R20 steel wire; Number of Tire:12 pieces | |
| Brake system | Brake Chamber | 6 big chamber |
| Brake Valve | KTL Brand/WEBCO | |
| Brake system | Dual Line Brake system | |
| Other | Tool box | 1 set standard tool box |
| Light | Tail lamp with turn signal ,brake light & reflector, side lamp etc. | |
| Painting | 1 coat of anticorrosive prime, twice coats of final paint. | |
| Spare Tire Carriers | 2 pieces | |
| Twist lock | 12sets twist lock for 1*20ft,2*20ft,1*40ft container | |
| Landing gear | 28T Manual operating, Heavy duty landing gear | |
| Weight | Tare Weight | 7200Kg |
| Loading Capacity | 20-60T | |
| Axle weight load | 13T |
Design Drawing:
A Drawing will Send to Clients Confirm Suitable Design for Varied Trucks and Purpose.Try to Provide Most Suitable Trailers
Blank Progress:
Beams and Accessories are Processed with Scale Numerical Control Plasma Cutting Machine,Brings High Precision,Ensure Geometric Accuracy.Rolling-Over Welding Provide Every Point Quality Welding.
Shot Blasting:
Trailer Body and Ports are Pre-treated with Shot Blasting in Order to Remove Rust and Eliminate Oil,Improve Surface Intensity and Painting Adhesion
Painting:
Once Primer with Twice Finish Painting Provide Good Anti-rust Capability
Test:
Trailer Performance test before delivery
