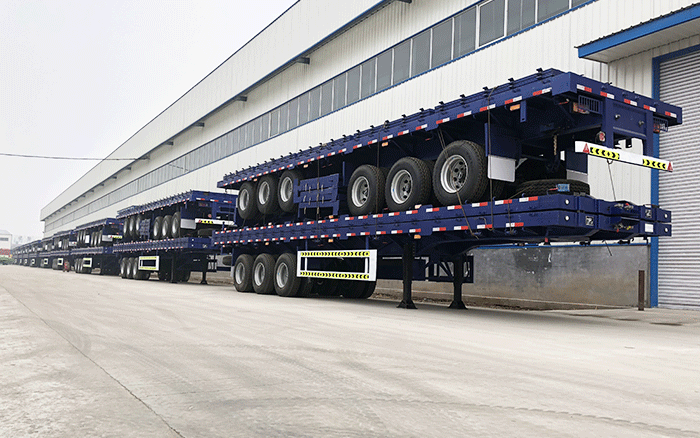

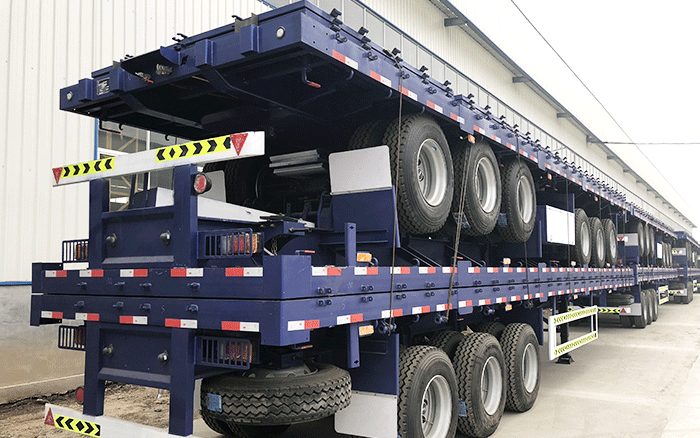

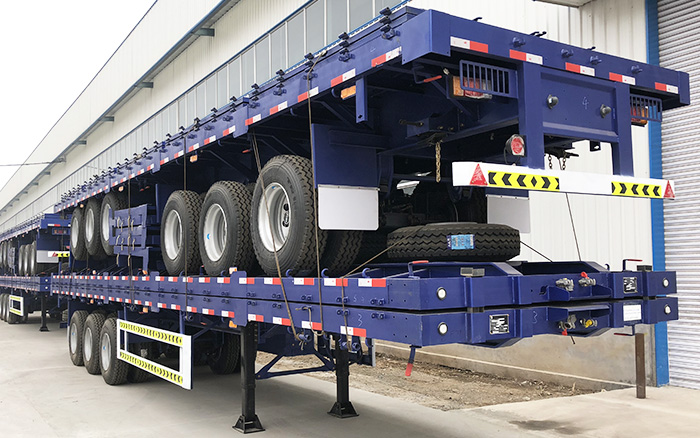

FLATBED TRAILER HIGHLIGHT

• Carrying for dry cargos
• High Quality Body with Aluminum Doors
• BPW/FUWA
• ABS and EBS brake system
• JOST or China brand parking leg and king pin
• Air and Mechanical Suspension
• Strength Chassis Construction
• Front Axle Lifting
• Steel or Aluminum Rims

Structure:

–  Flat base on the front in 9.000 mm-13.600 mm sizes , also it is 2,440 mm long inside and 2550 mm long outside

–  Platform has 4 or 5 caps and they had been installed on the rack

–  Caps are connected to each other externally; they are 800-900 mm high.

–  Floor will be covered with one row of plate and one row of wood.

–  Periodically placed “Z” axle beams exist in the floor.

Chassis: Strengthened “I” section centre members are welded automatically by submerged welding machine. They are welded between 120/14 mm bottom or top steel plate and 5 mm hub plate.

Axles:  BPW or FUWA

There are brake shoes and heavy brake levers suitable for TSE norms

Suspensions ; It is supplied with China brand of 6 pcs of air cushion with Z leaf spring or mechanical leaf spring suspension with 12 mm x12 pcs of layer with 100 mm width

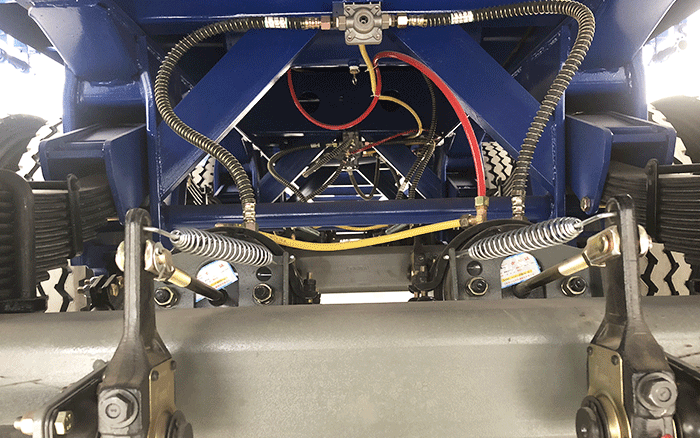

Brake System ; Wabco brand ABS or EBS braking system will be used.

Brake Chambers ; 1 Axles with T 30/30 emergency brake chamber,2 axles with T 30 service brake chambers

Electrical system ; 2×7 pin sockets – 24V, lights accord to standard in SAE rear stop lamps, side marker lamps, brake safety warning lamps and signal light fitted at the rear

2 tail & stop combined lamps (red)

2 turn signal combined lamps (orange)

1 license lamp (white)

Tires; 385/65 R22,5 or 12 R22,5 or 13 R22,5 or 315/80 R22,5 Bridgestone, Pirelli, Goodyear, Continental

Rims; 11.75 R22.5 Jantsa-Jantas Brand

King Pin ; Jost  or equivelent China brand OMS DIN 74080 standards 2’’ or 3,5’’ king pin detachable from below made by SAE standards 8 bolt type. With E certificate.

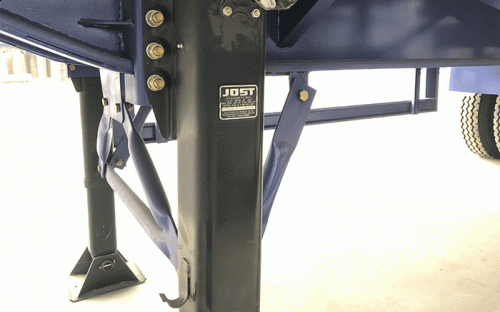

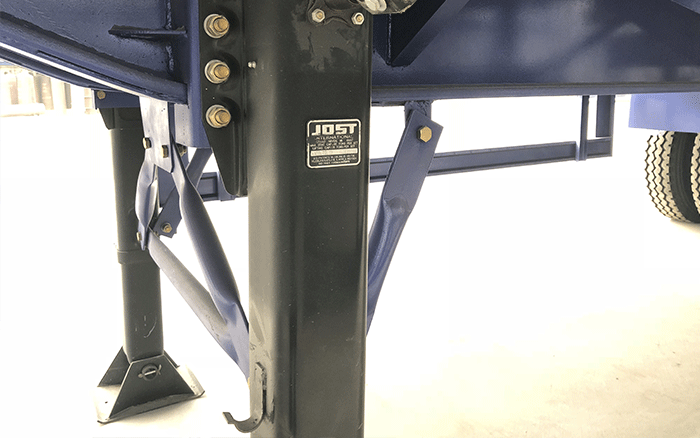

Landing Gear ; Jost  or equivelent China brand front Jack feet are telescopic,parallel working,double speed jointed with wide shoes static 50 tons, dynamic 25 tons capacity

Painting ; Before the painting, all surface is sand blasted

After sand blasting small parts are cleaned carefully

Epoxy gray is used for first protecting.

3 Times of high quality paints are applied on trailer

Thickness of painting checked by electronic devices

The color of trailer is selected by our customer according to RAL codes

ACCESSORIES

–  Multi-piece plastic fenders that covers trailing  axle tires

–  2 plate tool boxes

–  Control Panel(Mob, air clock, access ramp lever)

–  Plastic water tank

–  1 basket stare tire conveyor

–  Aluminum bike impact absorber

–  Mounting and mounting space

OPTIONAL SPECIFICATIONS

–  European axle shaft group and all kind of equipments

–  Import plates(Domex-Hardox)

–  NPI Section centre side member

–  Floor is completely MDF or completely covered with plate

–  Aluminum rims

–  Double spare tire conveyor

Axle shaft elevator addition

–  Lift tampon

–  Fire extinguisher closet and fire extinguisher tube

–  Additions on caps according to request

–  Tire mark according to request

–  RAL color codes according to request
