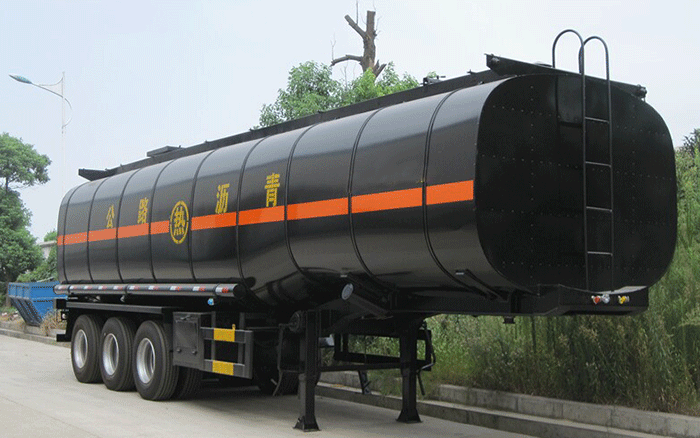

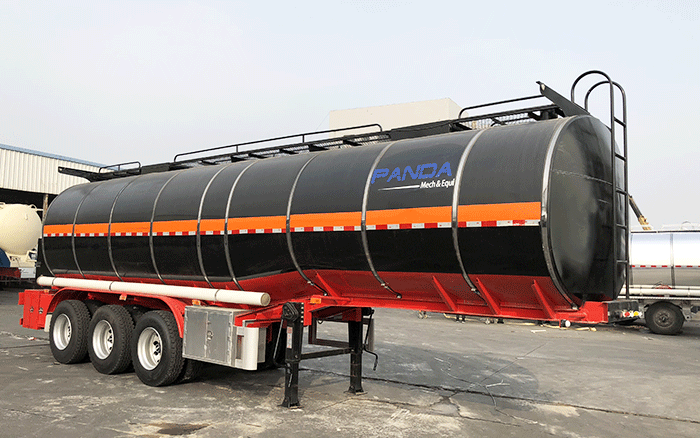

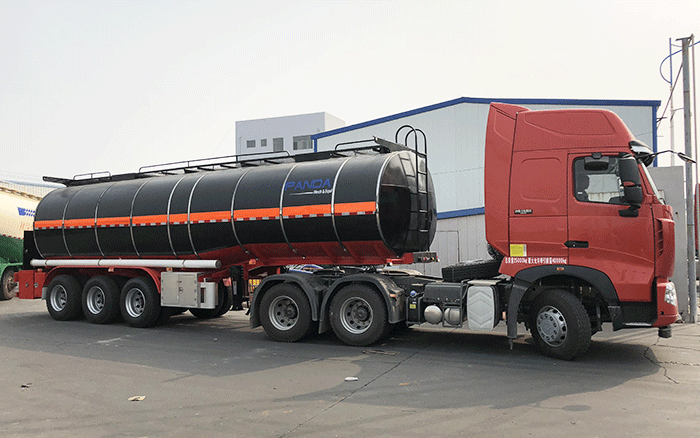

Bitumen Tank Trailer With Heating System

BST manufacture high quality Bitumen tank trailer is used to transport liquide asphalt from oil refinery and wharf to asphalt storge depot, also transport asphalt from asphalt storage depot to asphalt plant.
INQUIRY
Description Other Bitumen Tank Trailer With Heating System
Bitumen tank trailer also called heated bitumen tanker, heated bitumen transport, hot asphalt tanker, Insulation asphalt tanker, Liquid Asphalt tank trailer, semi-trailer hot asph.

Advantages - BST Bitumen tank trailer

  • High strength wear-resistant steel: the tank body is made of high-strengh and wear-resistant steel, that can ensure its long service life than ordinary material

  • All the welding are perfect to make sure the high safety and no air leak: Special welding marchine to weld the tank bod from one side but form smooth, sturdy and uniform welds on both sides.

  • The pipeline system is fitted iwth reasonable auxiliary blower and anti-wear device to realize somoother unloading process and faster unloading speed.

  • Adopt the domestic and foreign famous brand accessories and parts,such as weichai engin, bohai air compressor, fuda air compressor, that ensure its durabitily, save costs on operation and repari costs

  • Trailer frames using high-strength steel materials, light dead-weight, and  ensure its resistance to twisting forces, shock and bump, meet load requirements on different kinds of road.

Trailer Model

3 Axles 35CBM bitumen tanker trailer

Overall Dimension(mm)

11000x2500x3600mm

Function

Transport bitumen

Main beam

500 14 16 8

Compartment

1

Thickness(mm)

5mm carbon steel

insulation layer 80mm thick

0.6mm galvanized plate

Volume

30t

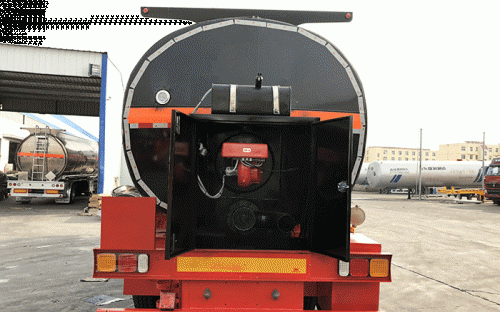

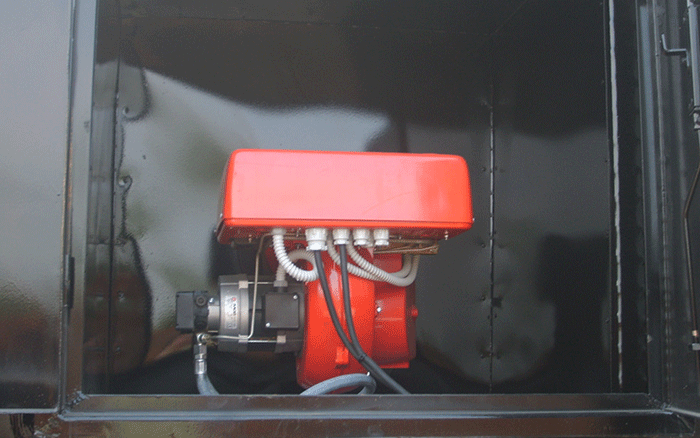

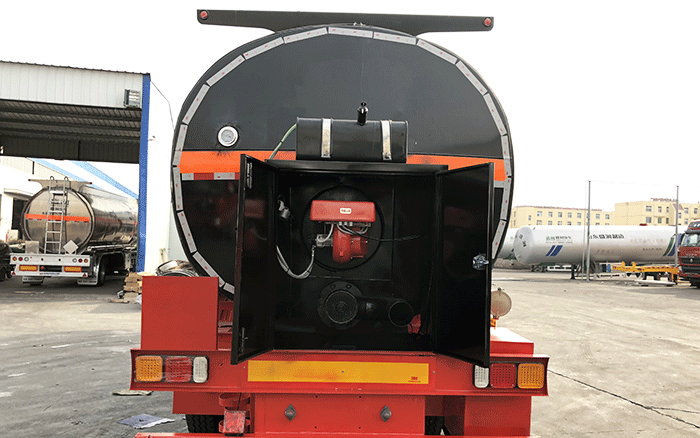

Heater

Diesel heater 220V, Italy Riello brand

Insulation layer

50mm thickness, glass wool

Axle

13Ton fuwa(original Guangzhou fuwa )

Axle Number

Three

Manhole cover

2pcs, 500mm manhole

Discharge valve

2

Suspension system

Mechanical Suspension

Steel Spring

10/10/10 leaf spring with 90mm(W) *13mm(thickness)

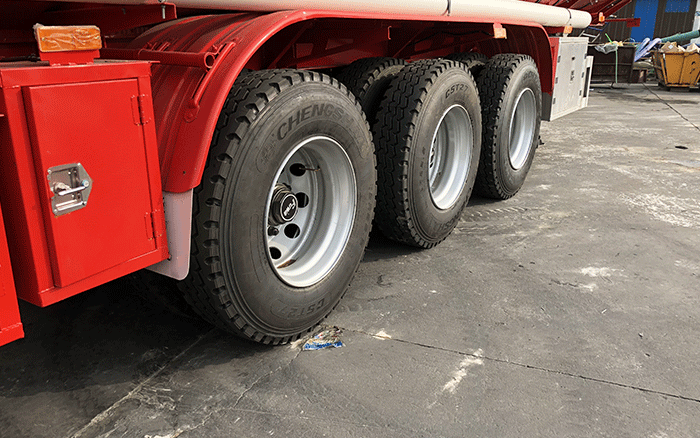

Tire Type and quantity

12R22.5   12units

Traction Pin

50mm/90mm, Jost brand

Landing Gear

Standard brand 28ton external, zhenhua brand

Brake

Dual Lines Pneumatic Brake System. T30/30 Air Chamber; Parking Brake,T30/30 type on each axle ,WABCO brake valve from Germany
