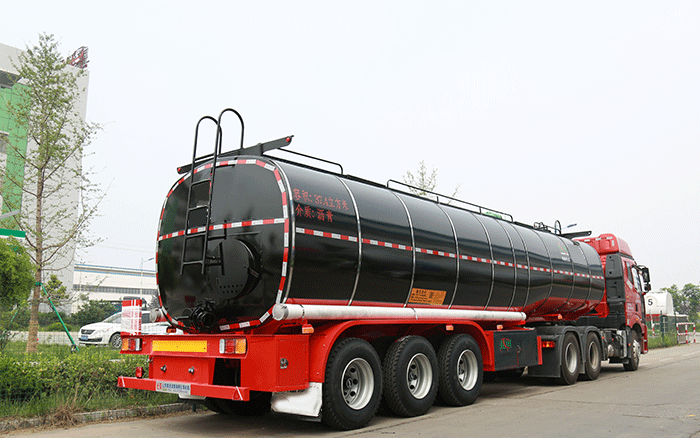

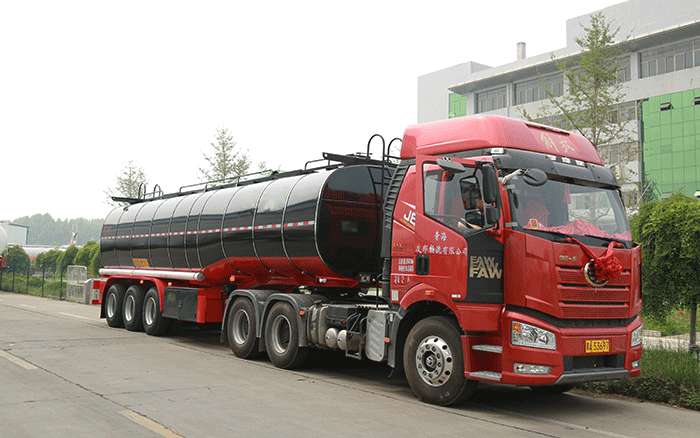

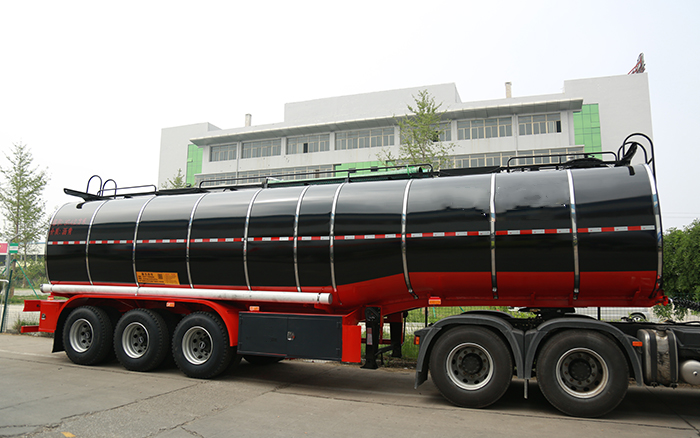

37.5CBM Asphalt Tank Trailer
|
Tank assembly |
Front/Rear end plate |
6mm |
Q235 carbon steel |
|
Tank body |
5mm |
Q235 carbon steel |
|
|
Compartment |
1-10 optional |
||
|
Manhole cover |
Diameter |
500mm |
|
|
Running mechanism
|
Discharging valve |
3 inch API standard |
|
|
Wave-proof plate thickness |
4mm |
||
|
Bottom safety valve |
4 inch |
||
|
Discharging pipe |
Diameter 3 inch Rubber hose,2pcs |
||
|
Cat walk |
Standard |
||
|
Axle |
Fuwa Brand 13ton 3pcs |
||
|
Rim |
9.0-22.5 12 pcs |
||
|
Tyre |
Tri-angle brand 295/80R22.5 12pcs |
||
|
Suspension |
Mechanical suspension |
||
|
Spring leaf |
90mm*13mm*10 Layer |
||
|
King pin |
Bolts type2 inch |
||
|
Brake system |
Air tank |
40L air tanks |
|
|
Brake chamber |
6 double spring brake chamber |
||
|
ABS |
(4S/2M optional) |
||
|
Landing gear |
JOST/SAF brand 28t two speed |
||
|
Accessories
|
Spare tire carrier |
One |
|
|
Light |
LED light |
||
|
Electric |
7 ways(7wire harness)and quick change type ,24Voltage |
||
|
Tool box |
One piece,1000x500x500mm |
||
|
Paiting |
Polyurethane paint&anti-rust primer&sand blasting |
||
|
Tools for trailer |
Head wrech ;spare wheel crank ; one fire extinguisher; Operation Manual |
||
