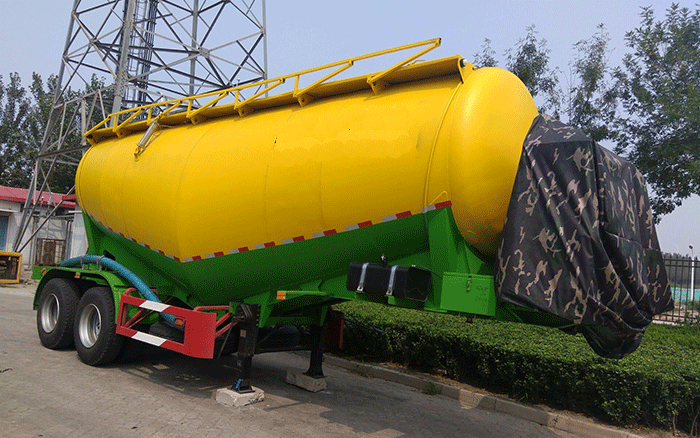

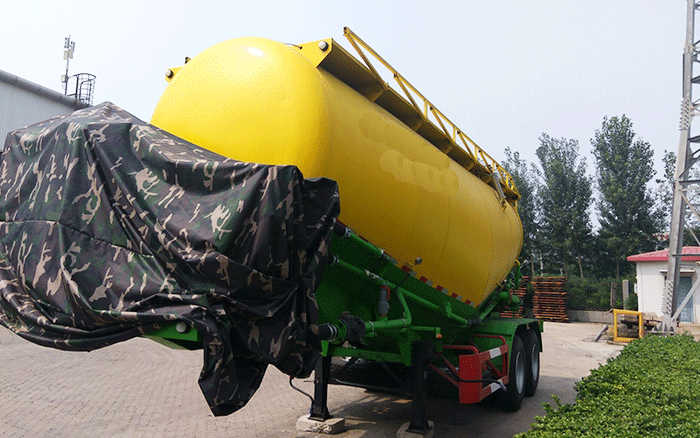

24CBM Bulk Cement Semi Trailer
Transport:
cement, sand, flour, and other granular materials.etc
Deutz Engine
Discharging speed:1.3 tons/minute
Residual rate: ≤ 0.3%
Volumetric ratio:≥ 98%
Supply Ability:
200unit/Sets per Month
cement, sand, flour, and other granular materials.etc
Deutz Engine
Discharging speed:1.3 tons/minute
Residual rate: ≤ 0.3%
Volumetric ratio:≥ 98%
Supply Ability:
200unit/Sets per Month
Description
| Item | Standard | Options | |
| Dimension | Length: 7980-12500mm | ||
| Width: 2550mm | |||
| Height: 3850mm | 3200mm | ||
| Main Beam | H Beam, V Shape | W Shape, Vertical type, AL | |
| Tank Body | High Straight Steel | Aluminum Alloy | |
| Body 5mm, Baffle 6mm | |||
| Manhole | 2pcs 500mm Steel with Safety Lock |
Aluminum Alloy | |
| Axle | Capacity: 13T | 9T, 11T, 14T, 16T, 20T | |
| Amount: 3 pcs | 2pcs, 4pcs | ||
| Brand: Fuwa | BPW, L1, SAF, HO’S, HJ | ||
| Type: Drum 10 nuts | Disc, 8 nuts | ||
| Brake System | System: WABCO Valve Duel Line type | ||
| Chamber: 30/30 type | |||
| ABS: None | WABCO, KEMI, EBS | ||
| Water Spray: None | 20L Air pneumatic type | ||
| Electric System | International Standard 7 pins Socket 7 Functions Lamp | ||
| Wattage: 24V | 12V | ||
| Suspension | Mechanical | Air, Bogie, Axle Lifting | |
| Tire | 12R22.5 Vacuum 12pcs | 12.00R24, 385/65 etc | |
| Rim | 9.00R22.5 12pcs Steel | Aluminum | |
| Standard Accessory | |||
| Safety Valve | 2pcs 2Bar | ||
| Pressure Gauge | 2pcs | ||
| Non-return Valve | 2pcs | ||
| Blower | 12pcs Pipe | ||
| Ladder | 2pcs at Front and Rear | ||
| Discharge Valve | 4” Disc Valve | ||
| Discharge Pipe | 1pcs 4” 6m Rubber Pipe | ||
