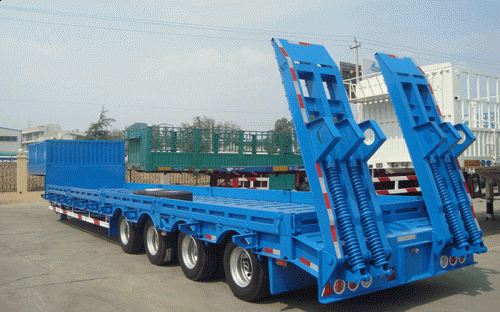

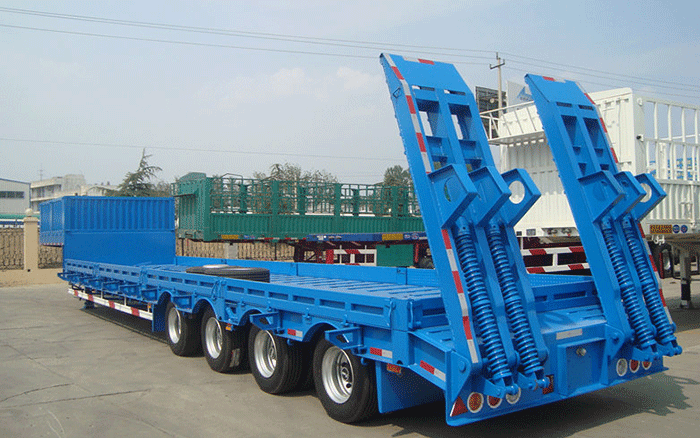

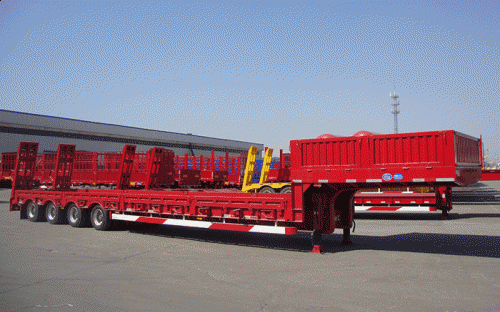

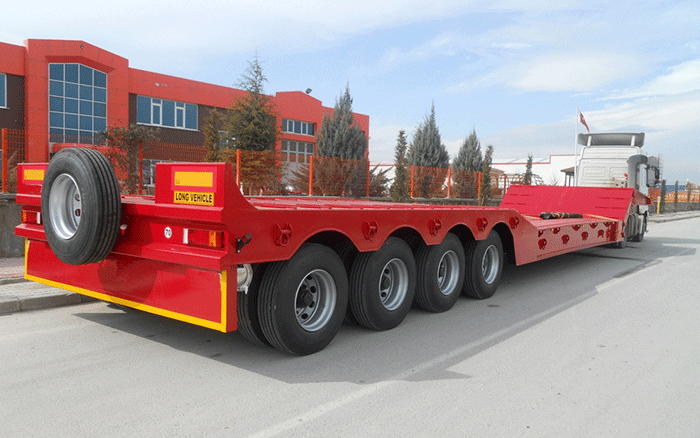

4 Axle Low bed Trailer
BST VEHICLEanical is manufacture of high quality, strong and competitive prices 4 Axle Low bed Trailer which can carry dozer, excavators, and other heavy loads on it. ,We can change technical specifications and graphic design according to the demand.
Description
Loading Capacity: 20 to 120 tons
Axles: BPW, FUWA or Certificated China brand
Steering: Self Steering or hydraulic steering axles
Accessories: JOST or China brand parking leg and king pin
Chassis: ST Quality Steel useage
Suspension: Air or Mechanical Suspension
Brakes: ABS and EBS brake system
Rims: Steel Rims
Tires: Pirelli, Bridgestone, Goodyear brand tires
Loading Ramp: Hydraulic or Pnemautic Ramp
Loading Ramp
– It is a pnemautic or hydraulic system. Ramp movement shall be provided by installation of a covered buton on to the tail part. Width of the ramp shall be 800 or 1000 mm according to lowbed
Chassis
– Low Loader rack is welded by submerged welding machine from 20 mm x 150 mm (ST 52.3 A Quality) bottom and top flat steel and 10 mm ST 52.3 hub plate. It has “I” section and also has 4 pieces
Platform
– Top middle part of the platform shall be covered by 3/4 mm thick metal sheet pursuant to utiliziation. Rubber or Hardwoods shall be installed onto the sides of the platform ( points where the pallet or wheels are) to provide maximum friction.
Brake System
– Dual circuit brake hardware, 24” Service brake bellows fitted to axle 3 24×30” Emergency
brake fitted to axle 1 and axle 2 Load balancing distribution valve, Automatic or manual brake adjusters
– WAbco ABS, EBS brakes
Axle
– Is manufactured in accordance with the European standards.It has a carrying capacity of 12 to 16 tons and donated Brake lining and bearing brand TIMKEN or FAG. Axle is certificated by ISO 9001 and 100.000 km warranty.
– 2 axles with the capacity 12-14-16 tons, are used
– Brand BPW, FUWA,China made
– There are brake shoes and heavy brake levers suitable for TSE norms
Suspension System
– Parabolic double deck Z springs, Stowage springs, bogie suspension
Electrical System
– 2×7 pin sockets – 12/24V, lights accord to standard in SAE rear stop lamps, side marker lamps, brake safety warning lamps and signal light fitted at the rear
– 2 tail & stop combined lamps (red)
– 2 turn signal combined lamps (orange)
– Steel supports for the lamps
Front Axle Lifing
– Remote operated elevating system for front axle shaft in cabin
Tires And Rims
– 235/70 R 17.5
– 245/70 R 17.5
– 295/60 R 22.5
– 11 R 22.5
– 12 R 22.5
– 315/80 R 22.5
King Pin
– JOST or China brand Steel king-pin which is 3,5” suitable for 6×4 tractor unit according to DIN 74080 standards and 3½” 42 CRMO4 according to DIN 74083 standards are used.
– King pin height will be arrange according to your tractor unit
Parking Legs
– JOST or Turkish brand two speed, telescopic, mechanical conveyor legs, with the capacity of 24 tons each
Paint / Color
– Before the painting, surface and accessories of chassis are made cleaned
– PPG or DYO brand high build epoxy filter is used for first painting.
– PPG or DYO brand is used for the main painting (3 times ).
– The RAL code color selection is made according to customers choice.
Accessories
– Load lushing ring
– 1 x tool box
– 2 x Bike safety bar
– Plastic or Steel Mudguards
– Parking chock with handle Ladder
– Fire extinguisher closet and fire extinguisher tube
Optional Specifications
– Lowbed platform can be pooled type to load high loads
– Extra spare tire conveyor
– Extra oil tank
