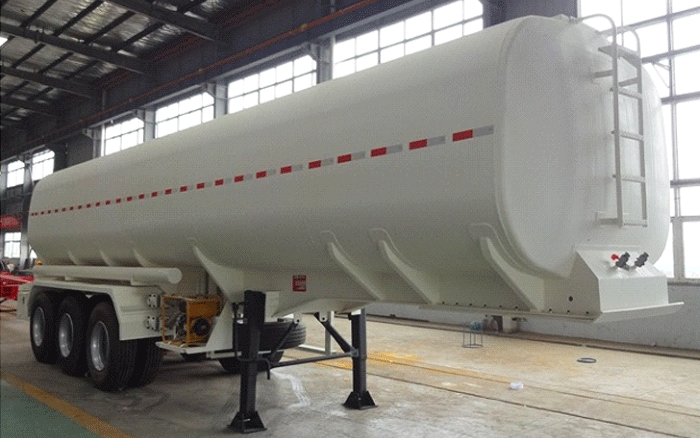

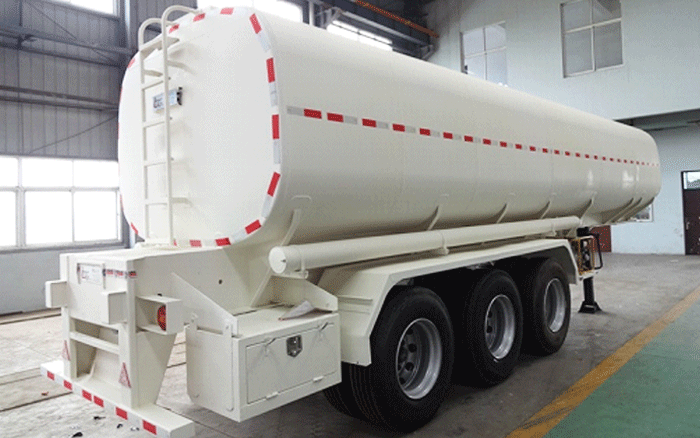

3 Axle Water Tank Semi Trailer
|
Tank body parameter |
Overall dimension(L×W×H)(mm) |
10500*2500*3650 |
|
Curb weight (kg) |
Approx 9900 |
|
|
Payload(kg) |
Approx 40000kg |
|
|
Tank material &thickness(mm) |
inner 5mm Food grade stainless steel, middle 80mm foam insulation layer, outside 2mm ordinary Brushed shape stainless |
|
|
Storage warehouse |
5 |
|
|
standard configuration |
with one PIC automatic cleaning device, food grade valve and interface, ventilation valve on the top of the tank, five 3'' stailess steel outlet on the rear of the tank, one spare tire carrier, one tool box, one rear ladder,etc |
|
|
Chassis parameter |
Axle number |
3 |
|
Axle load(Kg) |
13000 |
|
|
Suspension type |
FUWA Leaf spring suspension |
|
|
Brakes |
4-channel air brake compressed air brake |
|
|
electrical |
24V, with pneumatic fittings and seven pole socket |
|
|
Tire number |
12 with a spare tire |
|
|
Tire type |
12R22.5 or 11:00R20 |
|
|
King pin |
3-1/2″ or 2-1/2'' |
|
|
Outrigger |
28 ton manual outrigger |
