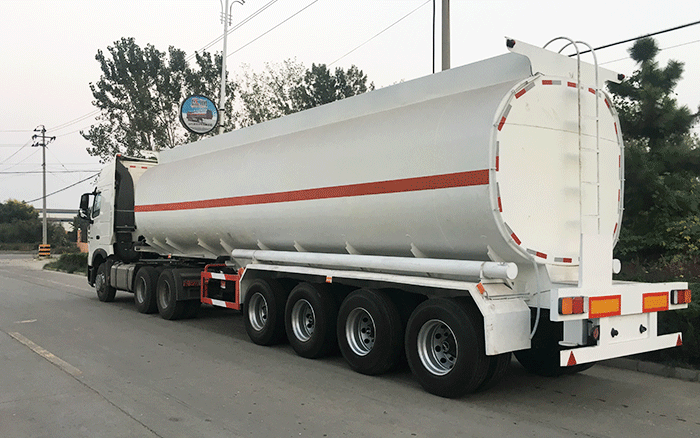

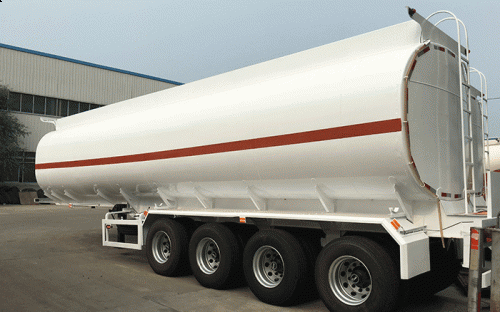

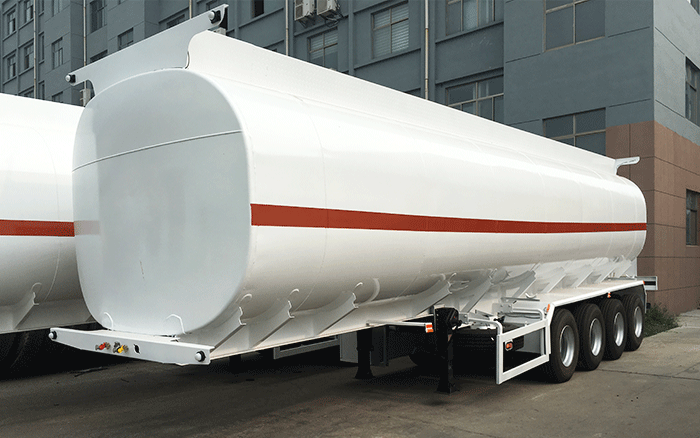

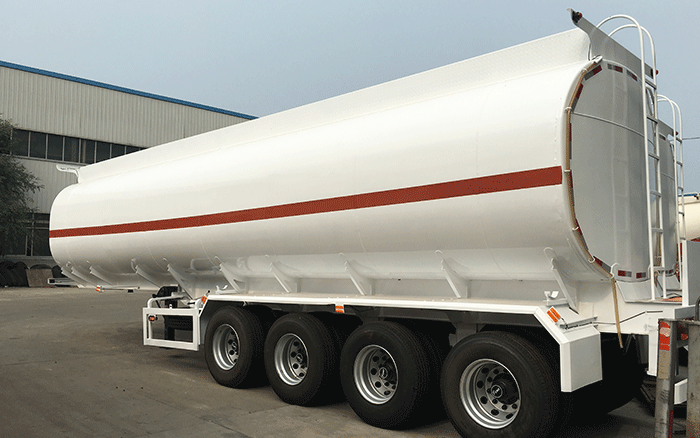

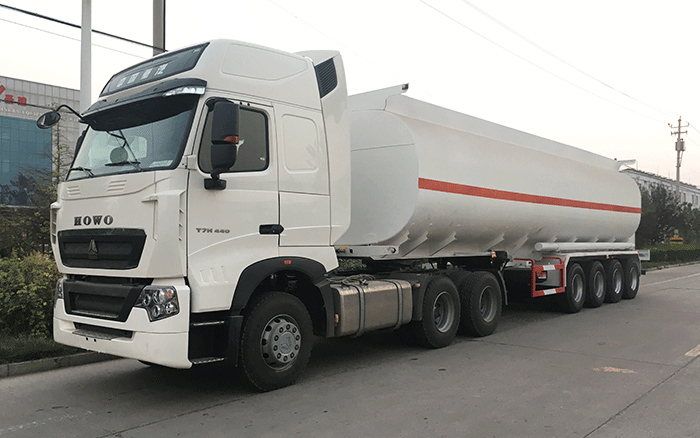

4 Axle 48 CBM Oil Tank Trailer
Transport medium:
Gasoline, crude oil, lubricants, coal tar, etc.
Tank shape:
oval tank, round tank, square round tank.
Delivery Time
28 ~ 40 days after we get the deposit
Supply Ability:
2000unit/Sets per Month
Gasoline, crude oil, lubricants, coal tar, etc.
Tank shape:
oval tank, round tank, square round tank.
Delivery Time
28 ~ 40 days after we get the deposit
Supply Ability:
2000unit/Sets per Month
Description
Basic Configuration
Size:13500*2500*3950 mm
Tank Body
Main tank shell ( material / thickness )
Mild steel Q345 ( 5 mm )
Head,Wash plate
( material / thickness )
Mild steel Q345 ( 6 mm )
Tanker bottom beam
( material / thickness )
Full loading straight type
Top coaming ( material / thickness )
Mild steel
Overturn protection
( material / thickness )
Mild steel
Tank shape
Elliptical shape
Compartments
1 compartment, opting more compartments
Tank Top Accessories
Aluminum Ladder with pneumatic control aluminum handrail in rear up to the tank top walkway.
With AL Anti-slip Walkway on the top.
If you are interested in our trailer, please contact us or leave a message online! Please fill in your contact information and needs.
We will meet your needs with perfect service, providing you with more details, prices, catalogs, drawings, videos!
Welcome to order ready-made or custom trailer orders!
Tank Body
Main tank shell ( material / thickness )
Mild steel Q345 ( 5 mm )
Head,Wash plate
( material / thickness )
Mild steel Q345 ( 6 mm )
Tanker bottom beam
( material / thickness )
Full loading straight type
Top coaming ( material / thickness )
Mild steel
Overturn protection
( material / thickness )
Mild steel
Tank shape
Elliptical shape
Compartments
1 compartment, opting more compartments
Tank Top Accessories
Aluminum Ladder with pneumatic control aluminum handrail in rear up to the tank top walkway.
With AL Anti-slip Walkway on the top.
If you are interested in our trailer, please contact us or leave a message online! Please fill in your contact information and needs.
We will meet your needs with perfect service, providing you with more details, prices, catalogs, drawings, videos!
Welcome to order ready-made or custom trailer orders!
Tank Equipment
Manhole:Opting different brand
Foot valve:Opting different brand
API standard quick connector - drain valve:Opting different brand
API adjustable joints:Opting different brand
API connector dust cover:Opting different brand
Vapor recovery system:Opting different brand
Pneumatic control system:Opting different brand
Air filter with pressure gauge:1 set.
Far end release valve:Opting different brand
Piping:Mild steel
Discharge method:Gravity discharge
Running Gear
Axle:FUWA 4 * 13 T axles, double wheel.
Opting BPW axle and single wheel
Suspension:Mechanical , opting pneumatic
Tire and Rim
16+1 pcs tires 11.00R22.5
16+1 pcs steel rim, opting aluminum rim
King pin:JOST 2” kingpin ( 50 # ) or 3.5”( 90 # )
Landing legs:JOST A400
Side guard
1 set LTA approval side guards
Rear Bumper
1 set LTA approval rear heavy duty under-run bumper
Braking System
Double line air brakes Mechanical parking brake with WABCO emergency relay valve. Air braking.
WABCO ABS SYSTEM 4S/2M
Electric Installation
Complete 24V system in explosion proof installation. 7 pin socket for tractor connection. With Junction box
LED lights. Rear lighting with rear, stop, parking, direction, fog,lights, side lights
With the buzzer
Paintin
Without painting, shiny finished
Accessories
Mudguards
PVC Mudguards for each tire.
Drain hose:√
Earthing strip"√
Fire extinguishers carriers:√
Spare tire carrier:√
Tool box:√
Manhole:Opting different brand
Foot valve:Opting different brand
API standard quick connector - drain valve:Opting different brand
API adjustable joints:Opting different brand
API connector dust cover:Opting different brand
Vapor recovery system:Opting different brand
Pneumatic control system:Opting different brand
Air filter with pressure gauge:1 set.
Far end release valve:Opting different brand
Piping:Mild steel
Discharge method:Gravity discharge
Running Gear
Axle:FUWA 4 * 13 T axles, double wheel.
Opting BPW axle and single wheel
Suspension:Mechanical , opting pneumatic
Tire and Rim
16+1 pcs tires 11.00R22.5
16+1 pcs steel rim, opting aluminum rim
King pin:JOST 2” kingpin ( 50 # ) or 3.5”( 90 # )
Landing legs:JOST A400
Side guard
1 set LTA approval side guards
Rear Bumper
1 set LTA approval rear heavy duty under-run bumper
Braking System
Double line air brakes Mechanical parking brake with WABCO emergency relay valve. Air braking.
WABCO ABS SYSTEM 4S/2M
Electric Installation
Complete 24V system in explosion proof installation. 7 pin socket for tractor connection. With Junction box
LED lights. Rear lighting with rear, stop, parking, direction, fog,lights, side lights
With the buzzer
Paintin
Without painting, shiny finished
Accessories
Mudguards
PVC Mudguards for each tire.
Drain hose:√
Earthing strip"√
Fire extinguishers carriers:√
Spare tire carrier:√
Tool box:√
