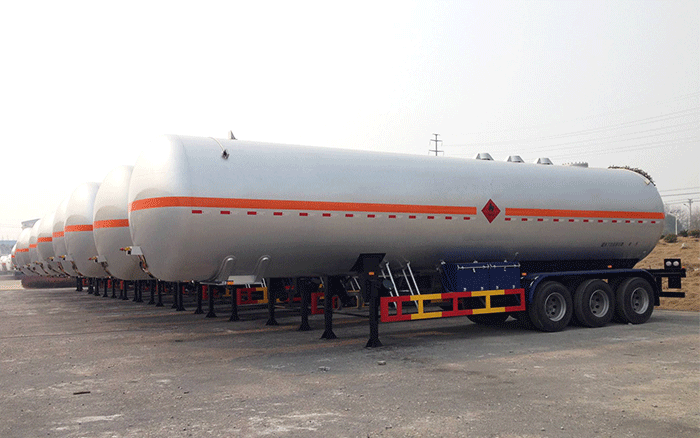

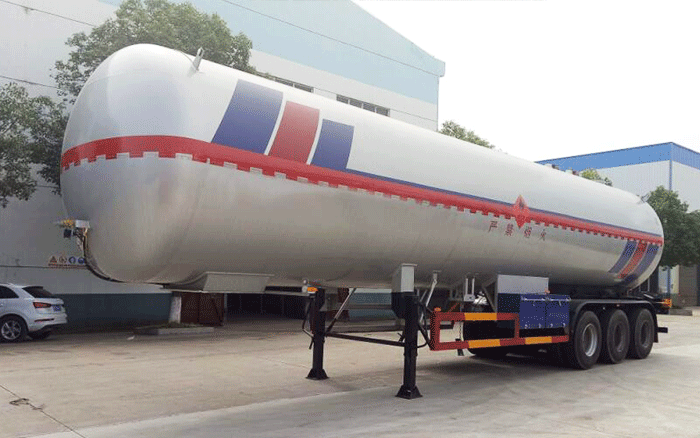

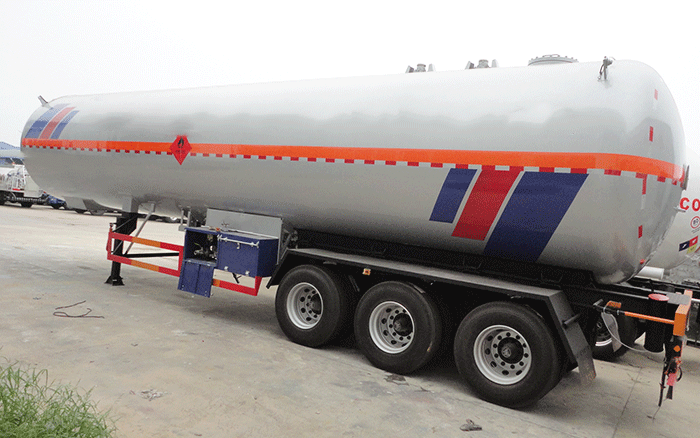

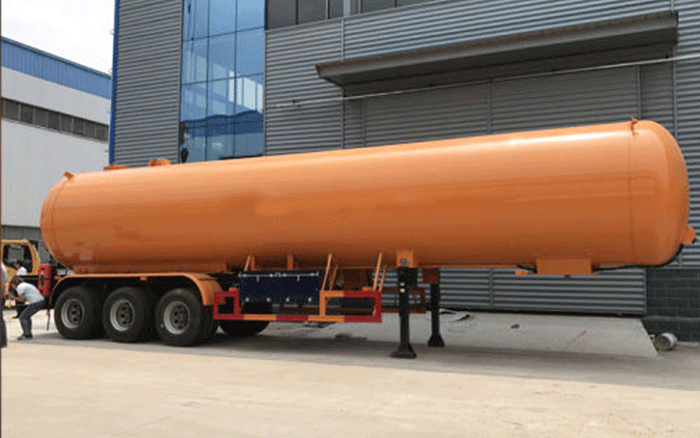

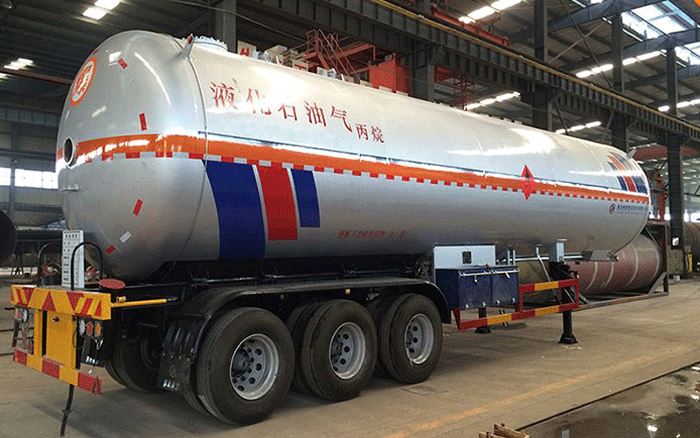

35 CBM Lpg Gas Tank Trailer
BST manufactures 35CBM Lpg gas tank trailer is dedicated vehicle for transporting liquefied gases (liquefied petroleum gas, propane, propylene, liquid ammonia, butadiene, isobutane, butane, isobutylene, etc.) on road.
Description
Other Lpg Tanker Traielr
| Capacity | 35 m3 |
| Type | LPG Tanker Trailer |
| Design Pressure | 17,5 bar |
| Test Pressure | 26,5 bar |
| Design Temprature | min -20 °c, max +70 °c |
| Dished Ends Type | Ellipsoidal |
| Tank Body | Cylindrical lime Truck made of 11 mm Special Lpg steel plate P355 ACC. To En 10028. |
| Equıpment Tanks Over | Block Flange DN 50 _ 2 units |
| Block Flange DN 80 _ 1 unit | |
| Hydraulic Operator _1 unit | |
| 3 “Ball Valves _3 units _ | |
| 2 “Safety Valve_2 units _ | |
| Vapor Discharge Valve 2” | |
| ¾” Check valve_ 2 units_ | |
| Rotogauge (Rotary Level Indicator) _ 1 unit _ | |
| Glycerine pressure gauge (0-25 bar), Ø 63 1 unit | |
| Thermometer (-30 / 60 ˚ C) Ø63 1 unit | |
| Acme Filler Cap 3 units | |
| Manhole_ 1 unit 16” 400 mm | |
| Filter_ 1 Unit | |
| 2 fixed out gauges 80 % and 85 %. | |
| Pressure gauge 0 – 30 Kg/cm² complete with valves | |
| Control (Inspection and Tests) | * Control Costs NOVA ‘to belong to a hydrostatic tank to be tested * Hydrostatic pressure test • Size Control • Control and Certification of Materials * Radiographic control * Inspection Certificate from TUV or SGS (design, calculations, material, visual, dimensional, plates, head control, heat treatment report, penetration dye test) |
| Chassis | Half Chassis Has been produced in welding constructions with gas metal arc welding as “I” crossing from high resistant ST 52 considering overloads proper to capacity and intended usage |
| Axles | * BPW Type Turkish brand MPD 3 x 12 Ton axles with air spring suspensions / Drum brakes. There are brake shoes and heavy brake levers suitable for TSE norms * Multi Leaf Spring suspension will be used 12 pcs x 12 layers for each spring |
| Brake | * Wabco ABS brake system will be used * Dual circuit brake hardware, 24” Service brake bellows fitted to axle 3 24×30” Emergency brake fitted to axle 1 and axle 2 Load balancing distribution valve, Automatic brake adjusters |
| Electric Installation | * 2×7 pin sockets – 24V, lights accord to standard in SAE rear stop lamps, side marker lamps, brake safety warning lamps and signal light fitted at the rear * 2 tail & stop combined lamps (red) * 2 turn signal combined lamps (orange) * 1 license lamp (white) |
| Tires and Rims | * 6 pieces 385/65R/22.5” Petlas brand Wheel rims Jantsa or Jantas brand. Dimensions of the tires are determined considering the nearest load index values to technical criteria.. |
| Parking Leg | * OMS or GOS (Certificated Turkish Brand) Jost Type Two speed, telescopic, mechanical conveyor legs, with the capacity of 24 tons each |
| King Pin | * OMS (Certificated Turkish Brand) Jost Type Steel king-pin which is 3,5” suitable for 4×2 or 6×4 tractor unit produced 42 CRMO4 according to DIN 74083 standards. Kin pin Height will be arrange according to your truck. |
| Blasting and Painting | * SA2.5 the quality of the exterior of the tank shot blasted, epoxy primer after sanding the surfaces with shopprimer is to be implemented and the boat will be painted with white acrylic finish. The customer wants to be pasted on top of the tank other hazardous substances and other articles. |
| Accessories | 1 pc Steel Bumper cover 1 pc Spare wheel carrier 2 pcs Food and Tool box 2 pcs fire extinguisher 1 pc Side Protection Bar 1 pc Water Tank 2 pcs Wheel chocks |
