Curtain Side Wall Trailer

Curtain Side Wall Trailer can effectively reduce the weight of the car body and is a necessity for international high-end logistics transportation in the future.
INQUIRY
Description Configuration

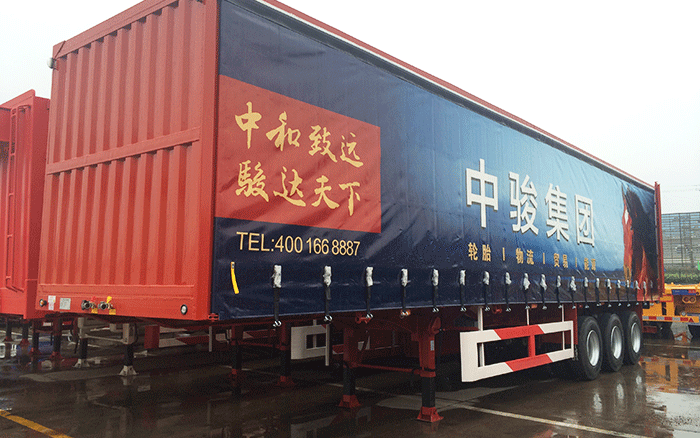

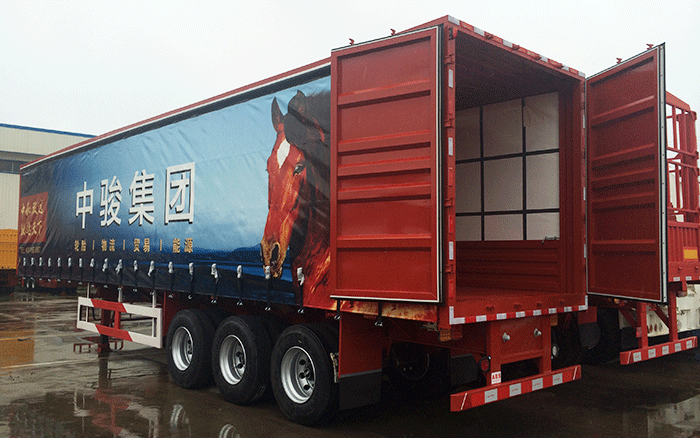

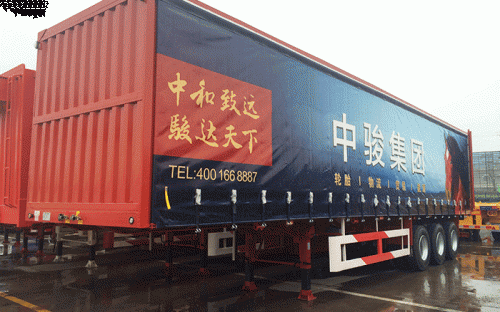

BST Curtain Side Wall Trailer
1, from the weight point of view, in addition to replacing iron with aluminum, curtain cloth with cloth instead of iron is the best way to achieve lightweight. Drapery has its unique advantages in terms of flexibility and maximum attendance. This is especially true when there is a need to pick up and deliver goods frequently in freight.
2. From the aspect of loading and unloading efficiency, the curtain car can greatly improve the loading and unloading efficiency of the goods. When the curtain car is opened, in addition to our usual loading and unloading at the rear of the carriage, goods can be loaded and unloaded on both sides or at the top of the vehicle. This gives greater play to the role of handling tools (such as forklifts, lifting tools, etc.), thereby reducing the labor intensity of workers.
3, from the appearance point of view, the integrated side of the inkjet printer or the pattern is more beautiful than conventional trailers.





BST professional engineering team will be ready to provide you with a set of well-integrated solutions that meets your transportation needs and your local regulartions. BST engineering team can communicate with you online to fully understand your needs, the solutions include the product design, product material, product drawings, product videos.

BST Curtain Side Wall Trailer

Dimensions

11000-13000×2490×3250mm-3900mm (can be customized)

Loading capacity

25T-60T

Axle

Loading capacity of 13T/16T, FUWA brand (BPW brand and China brand for options)

No. of axles

1/2/3

Rim

9.00-22.5 (8.0-20 or others as needed)

No. of rims

Accordingly

Tire

12R22.5 (315/80R22.5, 11R20 or others as needed)

No. of tires

Accordingly

Suspension

Mechanical Suspension with stamping plate rigid leaf springs

(Germany Type or America Type)

Or Air Suspension (China brand or BPW brand)

Leaf springs

90mm×13mm×10 or 100mm×12mm×12 or others by factory to fit the semi trailer

King pin

2.0 or 3.5 inches according to requirement, JOST brand, bolts type or Welding type

Landing gear

D200T JOST brand or 28Tons (two-speeded) China brand

Stringer

Height: 500mm, upper plate is 14mm, middle plate is 8mm, down plate is 16mm; Material is Q345 carbon steel (called as manganese steel as well).

Can be designed according to customers' requirements.

Side beam

Channel steel, 16 mm or 18 mm in thickness (Material is Q235 carbon steel)

Car floor

Steel plate, 3mm in thickness or as demand

Height of the box

1500-2700mm for your choice

Braking chamber

WABCO RE 6 relay valve; T30/30+T30 spring braking chamber (TKL brand);

Two pieces of 45L air tanks

ABS

Optional

Valve

WABCO valve

Light

LED light by international or European standards

Voltage

24V

Receptacle

7 ways (7 wire harness)

Tool box

One unit with a standard set of tools by factory

Painting

Complete chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint

Usage

Applicable to the transportation of the household appliance, textile goods, coal, dinas and other building materials.

Other Descriptions

Double sides and top can all or separately adopt PVC-canvas, there will be supporting bars or steel plates at inner side of the curtain for safe transporting goods at high speed and when turning, and reasonable trailer accessories were placed at the rear guard box for convenience.

Other Specifications

The top of the box can be close-ended, pull/push open-ended, open-type, or open-type with cloth tent poles.

The max height of the rear guard from ground is 550mm, and the cross section is 160mmX40mm.
