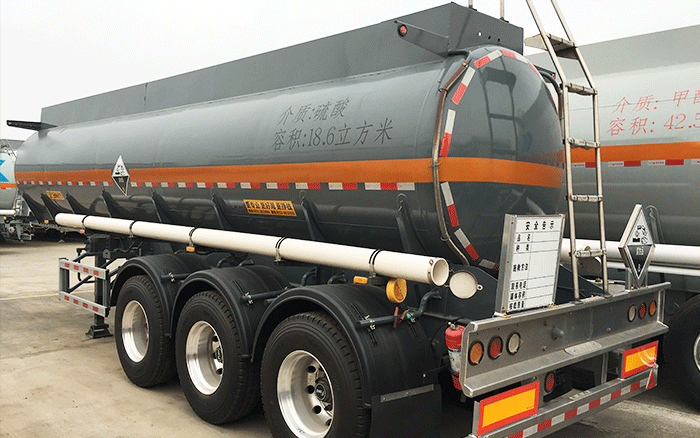

21 CBM Acid Tanker
|
Specification |
sulphuric acid transport tank trailer |
|
Volume |
20-60 CBM |
|
Dimension |
9950x2500x3900mm |
|
Tank Material |
carbon steel/stainless steel/aluminum alloy |
|
End Plate |
5/6mm carbon steel |
|
Manhole cover |
Stainless steel manhole cover |
|
Bottom valve |
Aluminum API peneumatic bottom vavle |
|
Discharging vavle |
3/4 inch |
|
Discharging pipe |
4'' rubber pipe, 6m/piece, 2 pieces |
|
Compartments |
single compartment |
|
Axle |
FUWA brand 3x13T |
|
Tyre |
Trr-angle brand, 12R22.5 12 pcs |
|
Spare type bracket |
2 pcs |
|
King pin |
2/3.5 inch |
|
Brake system |
2 line pneumatic brake system. Type 30/30 spring brake system on two axles. ISO type air coupling at front of the semi-trailer. |
|
ABS |
optional |
|
Brake chamber |
4 Double, 2 Single |
|
Electrical system |
Chinese standard 24V; 7 ways receptacle; LED lamps |
|
Color and Marking |
Comply with the customer’s requirement |
|
Accessories |
One standard tool box |
|
Remark |
Any color will be available, Small order accepted |
