● Product Introduction:
The Moldboard plough is suitable for loam, or sandy loam soils in the cultivated area. it is compact in construction, and versatile in application . After plowing, the land surface is smooth and the furrow is narrow with a good pulverization and mulching.

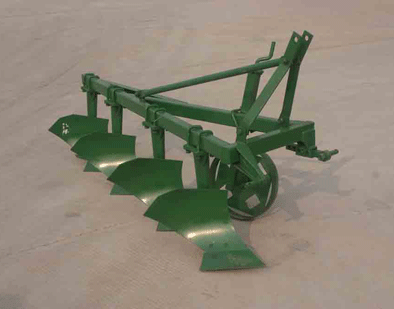

Moldboard plough/plow

Model	1L-220	1L-320	1L-420
Nos. of the body	2	3	4
width of each body(mm)	200	200	200
Working width(m)	0.4	0.6	0.8
working depth(mm)	200~250	200~250	200~250
weight(kg)	80	115	145
matched power(hp)	12	25~30	30
Linkage	(Standard three-point mounted)

Model	1L-225	1L-325	1L-425	1L-525
Nos. of the body	2	3	4	5
width of each body(mm)	250	250	250	250
Working width(m)	0.5	0.75	1.0	1.25
working depth(mm)	200~250	200~250	200~250	200~250
weight(kg)	125	228	330	435
matched power(hp)	25	35	50	65
Linkage	(Standard three-point mounted)

● Product Introduction:Application:
The 1LF Reversible Plough is a unique implement, which is directly mounted to the tractor. This is a hydraulically operated basic implement for preparation of land. The reversible plough is very useful in hard and dry trashy stumpy land condition and in soil where scouring is a problem. Heavy-duty clearance allows the plough to operate under heavy crop residual. This plough works on both the left and right side and automatically reverses the position while ploughing hence less time & diesel consumption. This plough is more suitable for big pieces of land.
● Advantages
• 1LF reversible plough clearance are adequate to cope with trashy conditions.
• The reversible Adding an extra furrow or repositioning units to allow for extra clearance is quick and easy.
• The plough has special wear-resistant steel bottoms with bar points for toughest ploughing jobs.

Reversible plough

Model		1LF-330	1LF-430	1LF-530	1LF-235	1LF-335	1lL-435
No.of bottoms		3	4	5	2	3	4
Working width	mm	900	1200	1500	700	1050	1400
Working depth	mm	160-250				200-300
Matched power	hp	55-65	65-90	100-120	40-50	50-70	70-90
Overall weight		550	750	950	450	650	900
Linkage	Stand three point mounted
