SGB Scraper Conveyor

HomeProducts Center

SGB Scraper Conveyor

SGB Scraper Conveyor

Other Names:

Product Detail: Product Introduction Coal scraper conveyor apply to slow gently inclined thin coal seam working face conveyor of coal. Mining height are broken floor to 0.6 m, dip Angle of coal seam is not more than 25 degrees is more suitable for hard

Related Products

Product Detail:

Product Introduction



Product Detail

Product Introduction

Coal scraper conveyor apply to slow gently inclined thin coal seam working face conveyor of coal. Mining height are broken floor to 0.6 m, dip Angle of coal seam is not more than 25 degrees is more suitable for hard coal, large blocks or more inner dirt band conveyor coal. The scraper conveyor is designed to mainly for horizontal transportation in the underground coal mining industry and metallurgical mine.

Main Characteristics

1, Solid structure: it can withstand coal and waste rock or other materials of blunt, hit, and other external force.

2, Can adapt to the coalface floor rugged, bending goes needs, can withstand the vertical or horizontal bending.

3, Body short, easy to install.

4, Can double as the shearer running the orbit .

5, Can reverse operation, easy to deal with bottom chain accident.

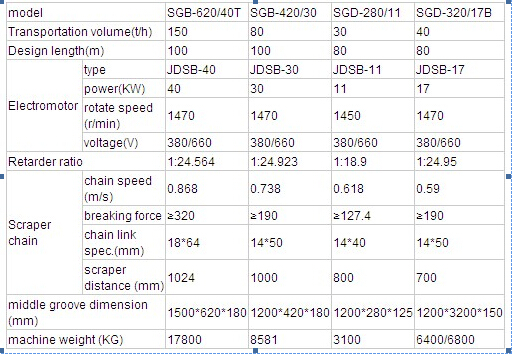

Technical Parameters
