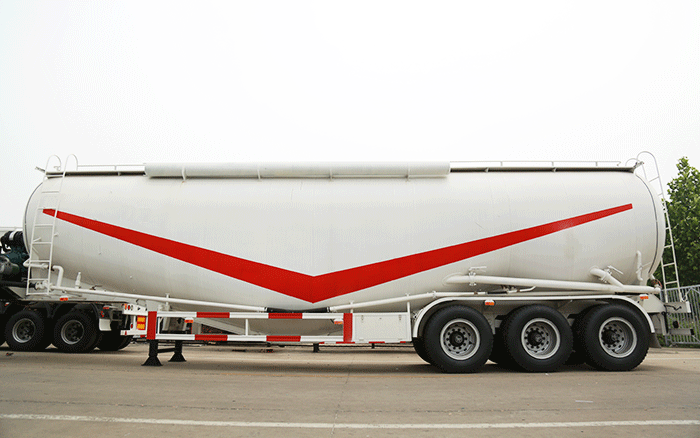

70 CBM 80 Ton Cement Bulker Tanker
Transport:
cement, sand, flour, and other granular materials.etc

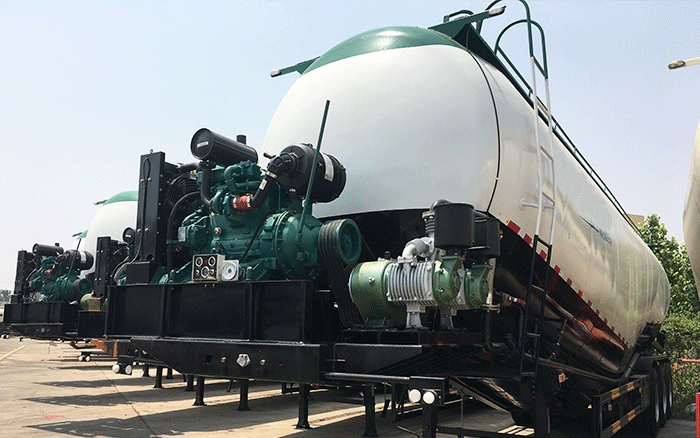

Deutz Engine
Discharging speed:1.3 tons/minute
Residual rate: ≤ 0.3%
Volumetric ratio:≥ 98%
Supply Ability:
200unit/Sets per Month
cement, sand, flour, and other granular materials.etc
Deutz Engine
Discharging speed:1.3 tons/minute
Residual rate: ≤ 0.3%
Volumetric ratio:≥ 98%
Supply Ability:
200unit/Sets per Month
Description
Configuration
Other 70CBM 80Ton Cement Bulker

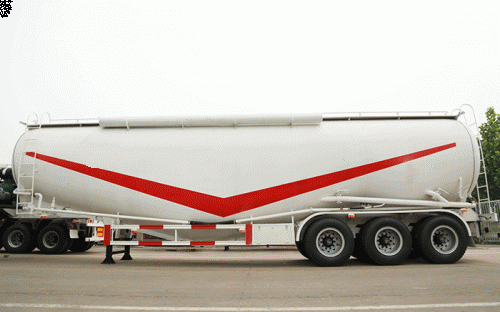

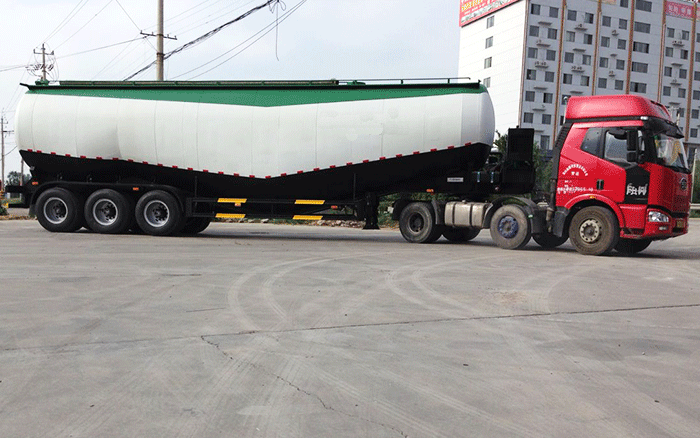

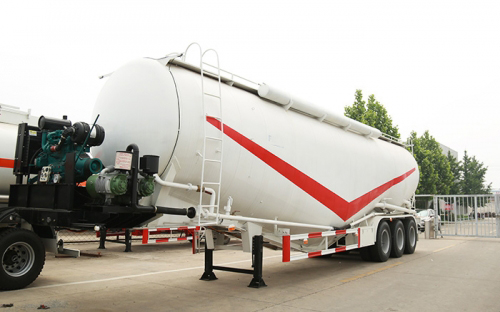

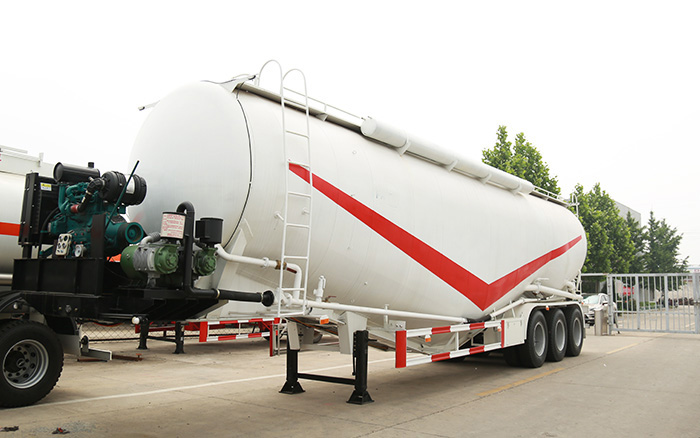

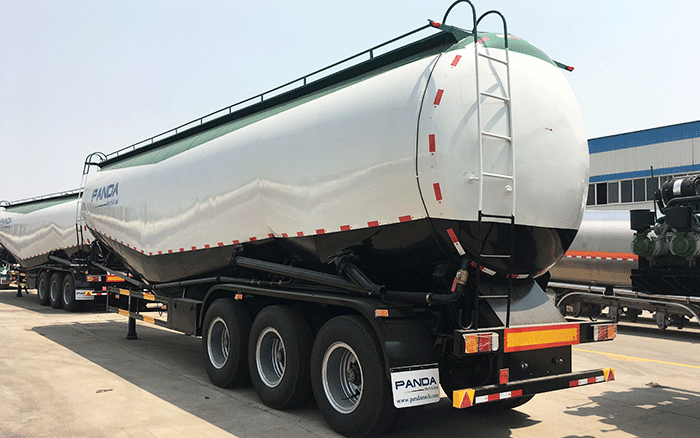

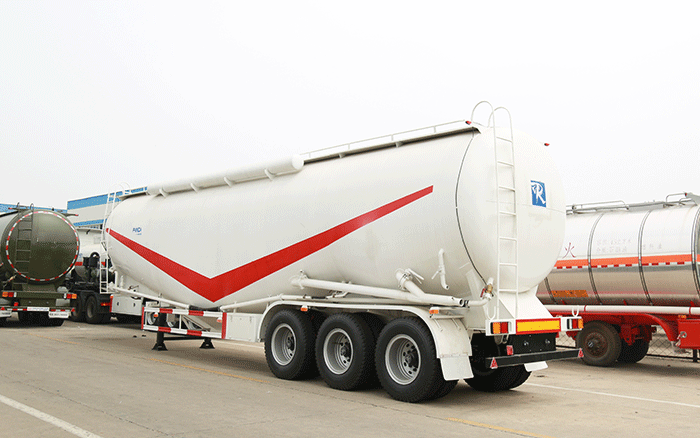

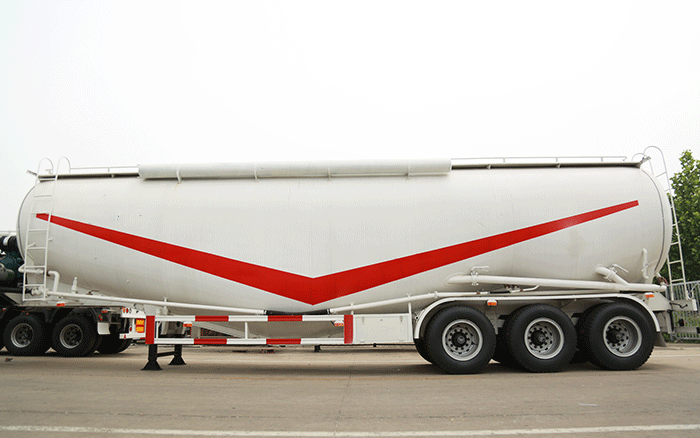

70CBM 80Ton Cement Bulker Tanker also known as silo trailer which is used for carrying different bulk items like cement, flour, wheat, lime and else. This kind of Cement Trailers has different useage opportunities like tipping silo trailer, or millenium euro type trailer which can be changed according to customer demand. we offer a wide range of Cement Bulker with different specification and different capacities and electric engines.
Large bulker cement trailer features: can be independent of warehouse storage, loading of different powder materials, unloading speed, low residual rate, high safety performance, easy to operate.
Large bulker cement trailer features: can be independent of warehouse storage, loading of different powder materials, unloading speed, low residual rate, high safety performance, easy to operate.
Traile:70CBM 80Ton bulk cement semi trailer
Overall Dimension:12500×2500×3600
Axle Brand:13tFuwa
Wheelbase(mm):8000+1310+1310
Steel Spring :-/10/10/10 leaf spring suspension
The material of main beam:The height of the beam is 500 mm, upper plate is14mm,
down plate is16mm,middle plate is 8mm.
Tank thickness:4 mm
Channel beam:4 mm
Tire Type and quantity:11.00R20 12 pieces
Traction Pin:90mm
Spare Wheel Carrier:2 sets
Tool Box:1 set
Access door:2 sets
Steel rim:12 pieces
Landing Gear:Standard single 28ton
Air compressor:Standard 10 CBM
Brake system:Dual Line braking system ,
Brake air chamber:Six double air chamber
Electrical system:
1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness)
Tail lamp with turn signal, brake light & reflector, side lamp etc.
One set 6-core standard Cable.
Painting:Color by customer's requirement
Packing :Polish with wax before shipping
Overall Dimension:12500×2500×3600
Axle Brand:13tFuwa
Wheelbase(mm):8000+1310+1310
Steel Spring :-/10/10/10 leaf spring suspension
The material of main beam:The height of the beam is 500 mm, upper plate is14mm,
down plate is16mm,middle plate is 8mm.
Tank thickness:4 mm
Channel beam:4 mm
Tire Type and quantity:11.00R20 12 pieces
Traction Pin:90mm
Spare Wheel Carrier:2 sets
Tool Box:1 set
Access door:2 sets
Steel rim:12 pieces
Landing Gear:Standard single 28ton
Air compressor:Standard 10 CBM
Brake system:Dual Line braking system ,
Brake air chamber:Six double air chamber
Electrical system:
1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness)
Tail lamp with turn signal, brake light & reflector, side lamp etc.
One set 6-core standard Cable.
Painting:Color by customer's requirement
Packing :Polish with wax before shipping
