ZCY-120 Hydraulic Side Dumping Rock Loader

Product Introduction

Product Detail：

Product Introduction

ZCY-120 fully hydraulic side dumping rock loader is a craw ler loading equipment,mainly used for loading coal or rock in a coal tunnel,a half coal-rock tunnel as well as a full rock tunnel. The ma-chine features of big force, good mobility, whole section applied, safety, multifunction. Besides loading, it can be used as a platform for supporting work, a device for short distance transporta-tion of material,a floor cleaning and wall cleaning device. Good comprehensive performance flexible adaptable. High insertion force mobility good whole section work safety multi-usage, etc

Main Characteristics

1.A frame with a medium wheelbase is adopted to provide high stability, mobility and flexibility and high adaptation to various types of working conditions; 2.Working mechanism with a single rocker, optimized design of articulated point, high lifting force and breakout force, short working cycle; 3.The front frame has a four-plate structure and the rear frame has a box girder structure with a high structural strength; 4.The bucket is capable of high-level automatic leveling to reduce the labor intensity and increase the working efficiency of the operator; 5.Key articulated points of the working mechanism have a dustproof structure to prolong the working life of the pin shaft.

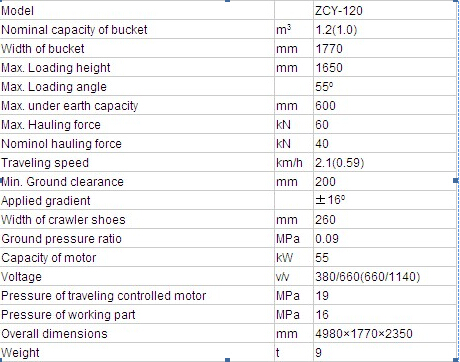

Technical Parameters
