TD75 Fixed Belt Conveyor

Product Introduction

Product Detail：

Product Introduction

The common fixed belt conveyors is a transportation equipment,which is widely used in chemistry, coal, metallurgy, building materials, light industry, grain and transportation department etc. It is applicable to transport capacity of 0.5-2.5 t / m3 of lump(block), powder and other bulk materials and can also transfer material in articles.

Applicable temperature is -20 degree to 40 degree. We can make it convey upwards downwards or on level according to customers requirement.

Operating Principle

1.Belt: Rubber or plastic belt. 2.Driving part: electronic motor, high speed coupling, speed reducer, low speed coupling, and all of the devices can be installed on a fixing bearing. Or using an electronic roller as a driving device. 3.Roller parts:Driving rollers and returning rollers. 4.Idler rollers parts: Trough idler rollers, parallel idler rollers, adjusting core idler rollers, and impact idler rollers , etc. 5.Intensity device: At the and of the belt to keep the belt work smoothly. 6.Unloading device: FIxed plow unloading device and electronic unloading vehicle. 7.Cleaning device: Elastic cleaning device in the front part, and empty segment cleaning device in the middle. 8.Brake device: Roller stopping device, Belt stopping device.

Main Characteristics

1. Specialized manufactured products.

2. Can be single machine transmission, can also be more machines combined to horizontal or inclined conveyor delivery system.

3. Can transport loose bulk density 0.5-2.5t/m3 all kinds of bulk materials and packed goods.

4. Fixed belt conveyor for the work of the ambient temperature, typically -25~+40°C.

5. Widely used in metallurgy, mining, coal, ports, power plants, building materials, food, chemical, light industry, petroleum and other industries.

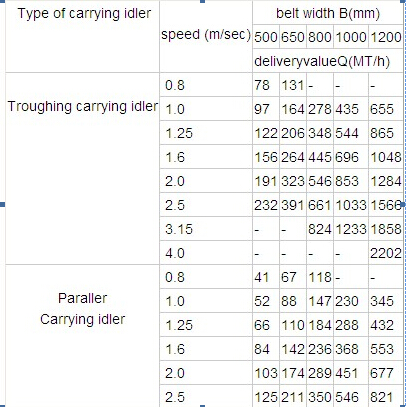

Technical Parameters
