PVC Conveyor Belt

Product Introduction

Product Detail：

Product Introduction

It is mainly applicable for the underground coal mines transport, and also the conveyance of materials for metallurgical and chemical industries. It can be divided into two types: PVC, PVG according to different structure. PVC type conveyer belt's upper and lower layers are PVC coating cover, single-sided tape thickness: ≥1.0mm; PVG type belt's upper and lower layers are nitrile rubber and PVC, single-sided tape thickness: 1.5mm-4.5mm.

Main Characteristics

1.PVC type conveyer belt's inclined angle: <16°

2.PVG conveyer belt's inclined angle: <20°

3.High tensile strength with heavy load

4.Flame retardant and anti-static rubber surface

5.Special treatment for fabric, greatly improved the anti-inflammability and adhesion

6.Anti-impact, abrasion and corrosion resistant

Main Advantage

1.PVC converor belt now is the best secure conveyor belt for the coalmine conveying

2.Prevent the conveyed material scattering and improve transport efficiency

3.Anti-fire,anti-static electricity,high intensity,long life

4.Good elastic and light body, good performance against slippery

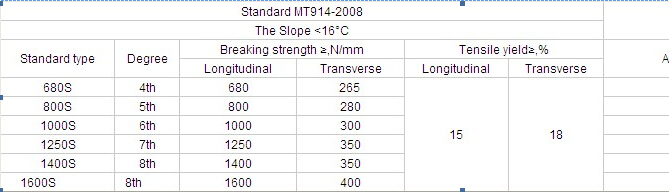

Technical Parameters
