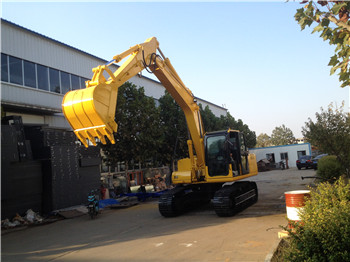

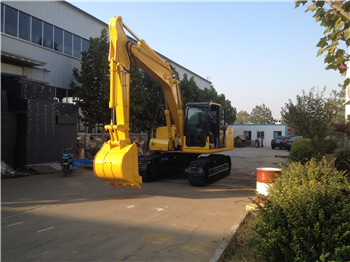

SD130-9履带式挖掘机CRAWLER EXCAVATOR |
|
|
外形尺寸（运输状态）：Dimensions |
|
|
运输时总长Overall Length(erm lowered) |
7820(MM) |
|
运输时总高Overall Height |
2775(MM) |
|
底盘宽度width |
2500(MM) |
|
履带宽度Track width |
500(MM) |
|
轨距Track gauge |
2000(MM) |
|
平台离地间隙Platform ground clearance |
400(MM) |
|
工作范围：Working Range |
|
|
最大挖据范围Max.Digging radius |
8330 (MM) |
|
最大挖掘机距离Maximum excavator distance |
8180(MM) |
|
最大挖掘深度Max.Digging Depth |
5550(MM) |
|
最大挖掘高度Max.Digging Height |
8500(MM) |
|
最大卸载高度Max.Dumping Height |
6060(MM) |
|
最小回转半径Minimum radius of gyration |
2650（MM） |
|
尾部回转半径Min Tail swing radius |
2330(MM) |
|
发动机Engine： |
|
|
发动机型号Model |
YC4A115Z-T20/康明斯B3.9-C |
|
额定功率power |
85kw/82KW |
|
冷却方式Cooling method |
直列四缸 水冷 增压中冷 柴油机water-cooling inter-cooling Diesel engine |
|
液压系统：Hydraulic System |
|
|
行走马达Walking motor |
轴向柱塞马达Axial piston motor |
|
回转马达Rotary motor |
变量柱塞Variable plunger |
|
主泵The main pump |
双柱塞泵Double plunger pump |
|
性能参数：performance parameter |
|
|
爬坡能力Climbing ability |
35° |
|
最大挖掘力Maximum digging force铲斗/斗杆（ISO） |
146KN（14600） |
|
回转速度Unit swing speed |
10-13r/min |
|
整机参数Specification |
|
|
铲斗容量（SAE）Bucket Capacity |
0.6m³ |
|
燃油箱容量Fuel reservoir |
270L |
|
液压油容量Hydraulic oil capacity |
130L |
|
整机重量Operating Weight |
13000kg |
性能特点performance characteristics
1：原装进口的液压原件，质量稳定可靠、工作效率高、挖掘机力大、标配压力变送器。
imported hydraulic components, stable quality, high efficiency, large excavator, standard pressure transmitter.
2：新型驾驶室及座椅、全新内饰、新型自动空调系统，操作安全舒适。
New cab and seat, new interior, new automatic air conditioning system, safe and comfortable operation.
3：新一代的智能化电器控制器系统、大屏显示操作功能。
A new generation of intelligent electrical controller system, large screen display operation function.
4：多种辅具可选装推土铲、破碎锤、抓木器、卷扬机、松土器、电磁吸盘等多种附件实现挖掘机、拾装破碎、整平等多种工作。
A variety of optional auxiliary dozer, hammer, grasping wood, hoist, Ripper, and other accessories to achieve electromagnetic sucker, pick up a variety of excavator crushing, leveling work.
